This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers. Designed with straight-In mains to save expensive cable and time.
SKU: 42972553
MFG: HOM3060M200PCVP
Shop more products by Square D.
We offer lowest price on Electrical Panel Boxes. With Life and Home you always get the best deals
DETAILS
DESCRIPTION

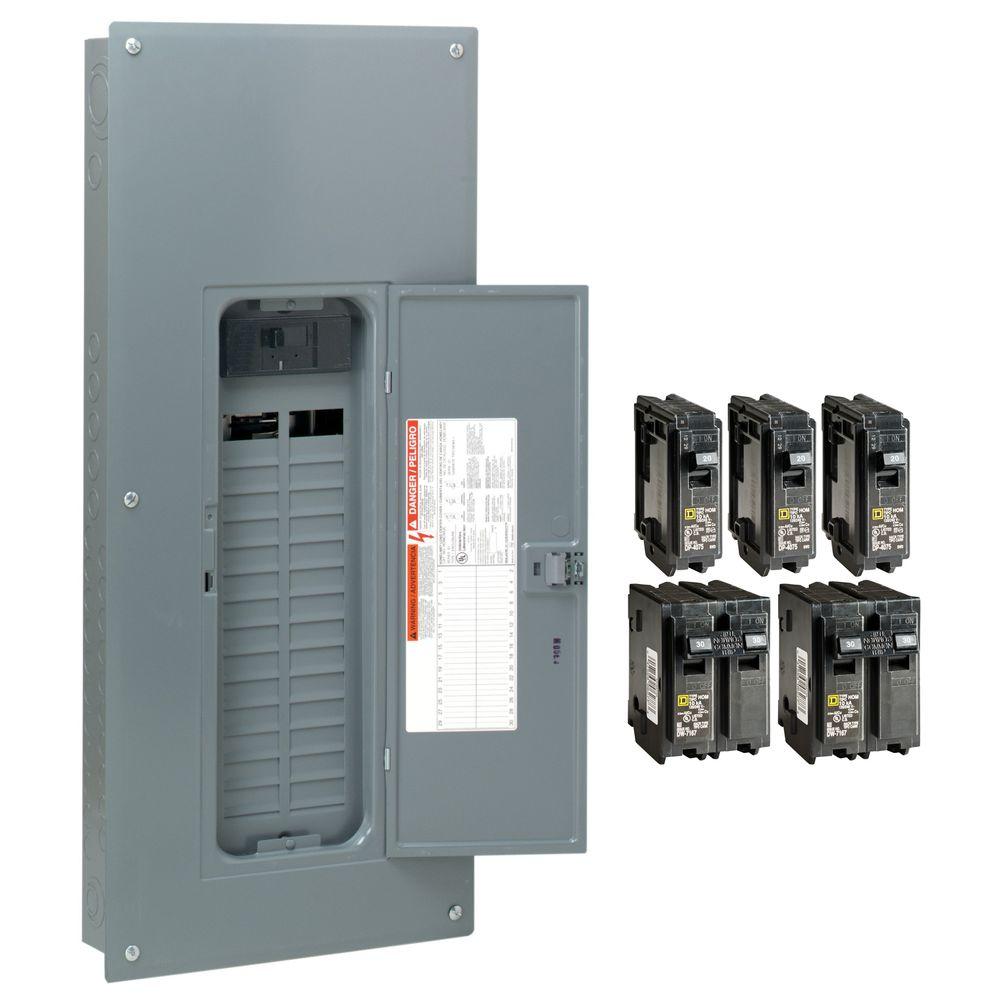

The Square D Homeline Value Pack 200 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers includes the cover and a selection of breakers. It is UL listed for residential and commercial power distribution. This load center is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers.
Highlights:
- Amp rating : 200
- Spaces/circuits : 30/60
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds
- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-In mains to save expensive cable and time
- Thermoplastic interior assembly is among the most rugged in the industry
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- Built with a plated, aluminum bus bar
- UL Listed
Warning: This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
FEATURES
MFR:
HOM3060M200PCVP
SKU:
42972553
UPC:
785901977827
Brand:
Square D
