DESCRIPTION

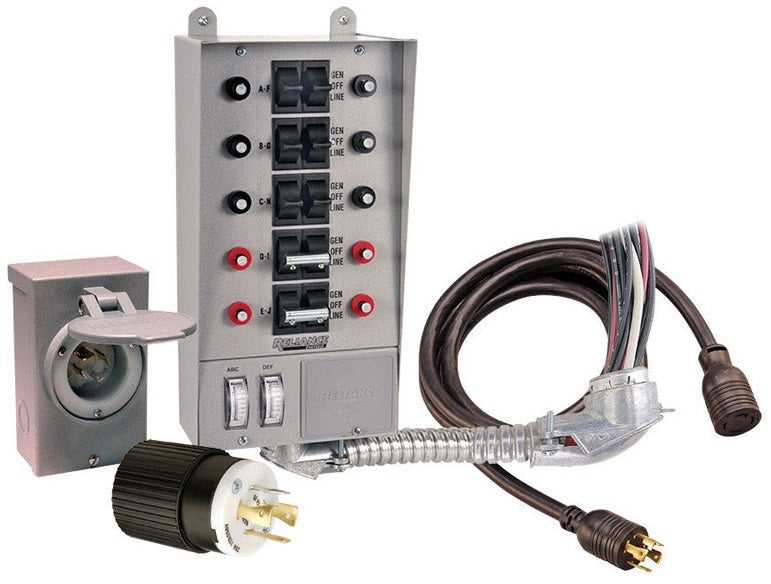

Highlights:

• Completely prewired with color-coded wiring for fast and easy installation
• Sixteen-inch flexible conduit whip attaches easily to a knockout on the load center - simply select the branch circuits in the load center that are needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the Installation Instructions (see below)
• Non-defeatable (break-before-make) double-throw Utility/Generator toggle switches for each circuit
• Utilizes conventional 1-inch interchangeable circuit breakers to protect each branch circuit when the toggle switch is in the Generator position. (The load center breakers protect the circuits when the toggle switches are in the Utility position
• This model includes one 20A double pole circuit breaker, two 20A single pole circuit breakers, and six 15A single pole circuit breakers
• Easily re-configured in the field for up to two 30A and eight 20A single pole circuits, or up to five double pole circuits as needed
• Color-coded watt-meters to help balance and manage the generator load
• Rugged powder-coated steel cabinet with six combination 1/2" and 3/4" knockouts
• Includes a hinged non-metallic cover to protect circuit breakers and toggle switches as well as provide a finished appearance
• UL Listed to UL Standard 1008 and is suitable for use in accordance with article 702 of the National Electrical Code ANSI/NFPA 70

Specifications:

• Maximum Wattage: 7,500 Watts
• Voltage: 120/240 Single-Phase
• Frequency: 60 Hertz
• Rated Amps: 60/30 Amps
• Max Generator Input: 30 Amps
• Connection Type: Male
• Prongs: Four-Prong
• Cord Length: 10'
• Wire Gauge: 10 Gauge
• Conduit Length: 18
• Circuits Breakers: 10
