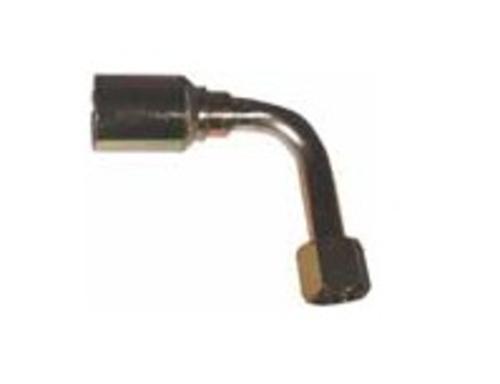

Imperial U Series 93242 Coll-O-Crimp High Pressure Hose End, 1.25"x1.25"
Imperial U Series 93242 Coll-O-Crimp High Pressure Hose End, 1.25"x1.25"
For very high pressure hydraulic lines subjected to pressure surges and flexing. Hose is no-skive when used with this hose end. Style: JIC 37 degree female swivel 90 degree tube elbow
We offer lowest price on Chain, Cable, Rope & Fasteners, save money on large orders with Life and Home.
DETAILS
DESCRIPTION
Highlights:
Hose is no-skive when used with this hose end
Cross Reference: 43020U-677
For use with H039, H145, H245, H350, H425, H430, H439, and H545 hose
Note: Requires a special T-420 Collet on a T-420 Coll-O-Crimp machine, no spacer ring required
Specifications:
Applications: Very high pressure hydraulic lines subjected to pressure surges and flexing
Finish: Zinc; Clear Trivalent Chromate
Hex Size: 2"
Hose Cutoff Factor: 2.99"
Hose Inner Diameter: 1-1/4"
Material: Low Carbon Steel
Series: 430 U
Style: JIC 37° female swivel 90° tube elbow
System of Measurement: Fractional
Thread Size: 1-5/8-12
Tube Flare: 37°
Tube Size: 1-1/4"
Type: Crimp Hose End
Working Pressure: determined by maximum working pressure for hose size and hose end configuration whichever is lesser
FEATURES
MFR:
93242
SKU:
42549242
Brand:
Imperial
