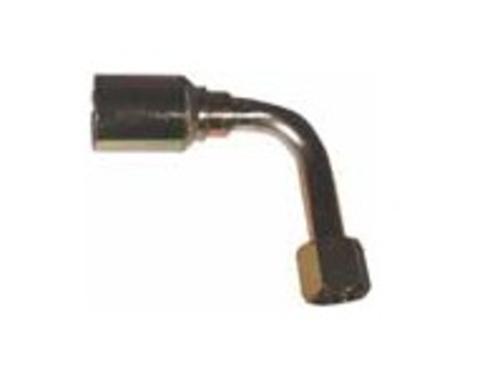

Imperial U Series 93232 Coll-O-Crimp High Pressure Hose End, 1/2"x1/2"
Imperial U Series 93232 Coll-O-Crimp High Pressure Hose End, 1/2"x1/2"
For very high pressure hydraulic lines subjected to pressure surges and flexing. Hose is no-skive when used with this hose end. Style: JIC 37 degree female swivel 90 degree tube elbow
Buy Chain, Cable, Rope & Fasteners on sale from largest building hardware materials store in USA
DETAILS
DESCRIPTION
Highlights:
Hose is no-skive when used with this hose end
Cross Reference: 43008U-668
For use with H039, H115, H145, H245, H350, H425, and H430 hose
Note : Requires a special T-420 Collet on a T-420 Coll-O-Crimp, machine, no spacer ring required
Specifications:
Applications: Very high pressure hydraulic lines subjected to pressure surges and flexing
Finish: Zinc; Clear Trivalent Chromate
Hex Size: 0.8750"
Hose Cutoff Factor: 1.94"
Hose Inner Diameter: 1/2"
Material: Low Carbon Steel
Series: 430 U
Style: JIC 37° female swivel 90° tube elbow
System of Measurement: Fractional
Thread Size: 3/4–16
Tube Flare: 37°
Tube Size: 1/2"
Type: Crimp Hose End
Working Pressure: determined by maximum working pressure for hose size and hose end configuration whichever is lesser
FEATURES
MFR:
93232
SKU:
42549172
Brand:
Imperial
