Working pressure up to 10,000 psi, depending on tube and fitting size. Used with copper, brass, steel, aluminum, and other tubing that can be flared. Good resistance to vibration.
SKU: 42601005
MFG: 97230
Shop more products by Imperial.
We offer lowest price on Brass Flare Pipe Fittings & Tees, save money on large orders with Life and Home.
DETAILS
DESCRIPTION
Highlights:
- Tube Outside Diameter: 1/4"
- Thread Size: 7/16–20"
- Angle: 37 degree
- DOT Approved: No
- Finish: Trivalent Zinc Plated
- Fitting Style: JIC
- Fitting Type: Flare Fitting
- Grade: 12L14
- Heat Treated: No
- Material: Carbon Steel - AISI/SAE 12L14

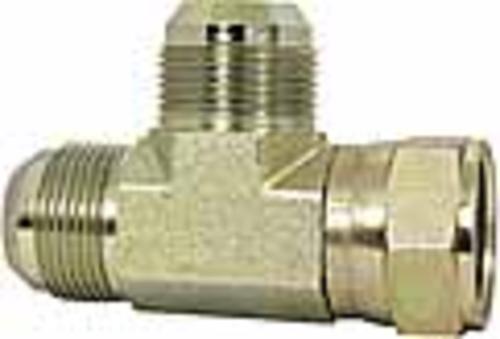

- Shape: Swivel Nut Run Tee
- System of Measurement: Fractional
- Temperature Range (Deg F): -65 to +400 deg. F
- Thread Size: 7/16"-20
- Thread Style: SAE
- Working Pressure: Up to 6,000 psi
- Working pressure up to 10,000 psi, depending on tube and fitting size
- Used with copper, brass, steel, aluminum, and other tubing that can be flared
- Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment
- Meets or exceeds ASA, ASME, SAE, and MS specifications
- Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required
- Cross Reference: C5706 x 4
- Per Package Of 2
Assembly Instructions:
- Slide nut on tubing. Threaded end of nut must face out
- Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out
- Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off
- Assemble tubing to fitting body. Tube nut should be turned hand tight
- Tighten assembly with a wrench
