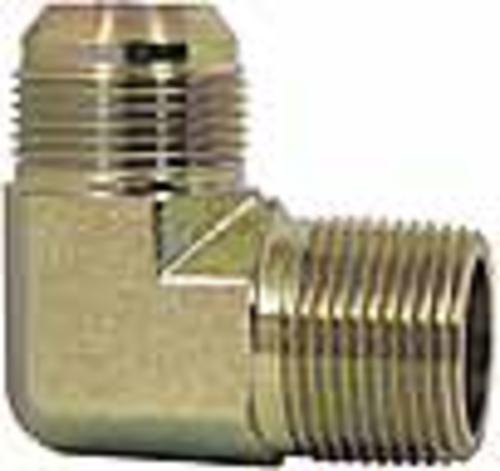

The Imperial JIC 90-Degree Elbow can be used with copper, brass, steel, aluminum, and other tubing that can be flared. Working pressure up to 10,000 psi, depending on tube and fitting size.
SKU: 42584323
MFG: 96448
Shop more products by Imperial.
Best online store to shop plumbing spare parts. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION
Highlights:
- Material: Carbon Steel - AISI/SAE 12L34
- Finish: Trivalent Zinc Plated
- Angle: 90 degree
- Grade: 12L34
- Connection Type: Male
- Fitting Style: JIC
- Fitting Type: Flared Fitting
- Pipe Thread: 3/4"
- System of Measurement: Fractional
- Temperature Range (Deg F): -65 to +400 deg. F
- Thread Size: 1-5/16"-12
- Tube Flare: 37 degree
- Tube Outside Diameter: 1"
- Vibration Resistance: Good
- Working Pressure: Up to 6,000 psi
- Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment
- Meets or exceeds ASA, ASME, SAE, and MS specifications
- Good resistance to vibration
- Use two or three piece nut design where greater vibration resistance is required
- Heat Treated: No
- DOT Approved: No
- Per Package Of 2
FEATURES
MFR:
96448
SKU:
42584323
Brand:
Imperial
