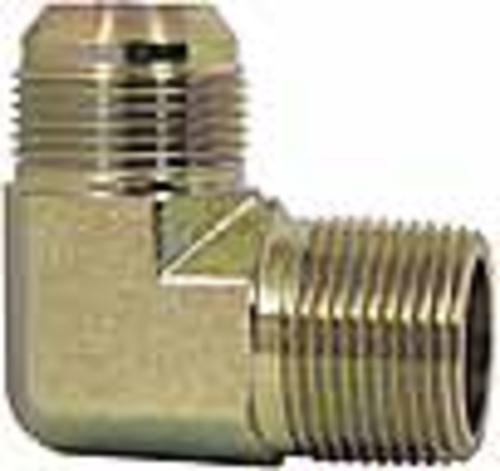

Male Steel Elbow Fitting
-
SAE 37° (JIC) Steel 90° Male Elbow Fitting.
-
Working pressure up to 10,000 psi, depending on tube and fitting size.
-
Used with copper, brass, steel, aluminum, and other tubing that can be flared.
-
Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment.
-
Meets or exceeds ASA, ASME, SAE, and MS specifications.
-
Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required.
-
Tube Outside Diameter: 1/4
-
Thread Size: 7/16–20
-
Pipe Thread: 1/4
-
Cross Reference: C5405 x 4 x 4
Assembly Instructions:
- Slide nut on tubing. Threaded end of nut must face out.
- Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out.
- Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off.
- Assemble tubing to fitting body. Tube nut should be turned hand tight.
- Tighten assembly with a wrench.
