DESCRIPTION

Highlights:

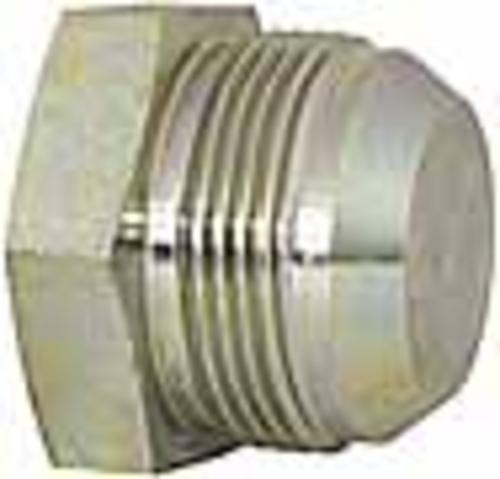

• SAE 37° (JIC) Steel Plug Fitting
• Working pressure up to 10,000 psi, depending on tube and fitting size
• Used with copper, brass, steel, aluminum, and other tubing that can be flared
• Applications include medium and high pressure lines on heavy construction, agricultural, and transportation equipment
• Meets or exceeds ASA, ASME, SAE, and MS specifications.
• Good resistance to vibration. Use two or three piece nut design where greater vibration resistance is required
• Tube Outside Diameter: 5/16
• Thread Size: 1/2–20
• Cross Reference: C5229 x 5

Assembly Instructions:

• Slide nut on tubing. Threaded end of nut must face out
• Slide sleeve on tubing (3-piece assembly). Collar end of sleeve must face out
• Flare tubing and check flare diameter. Examine for excessive thin-out. On thin wall tubing, use double flare to prevent pinch-off
• Assemble tubing to fitting body. Tube nut should be turned hand tight
• Tighten assembly with a wrench
