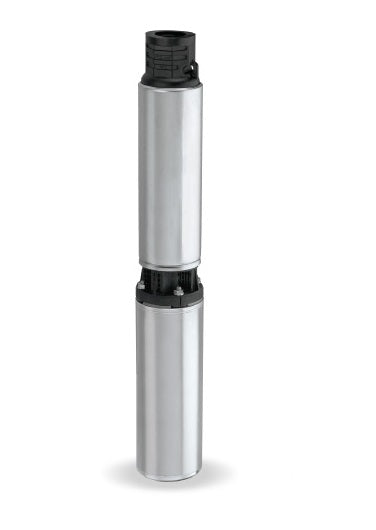

Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.
SKU: 41663064
MFG: FP2232
Shop more products by Flotec.
Shop for Well Pumps on sale from the biggest professional plumbing tools store in USA
DETAILS
DESCRIPTION
For residential water systems, or agricultural applications - pumps to depth of 400'. For 4" or larger inside diameter wells. High performance pumps - proven floating stack impeller design for sand resistance and reduced sand locking. Durable construction - stainless steel pump and motor housing. CSA certified.
Highlights:
- 1-1/4" npt.
- Size : 4"
- 2-wire- control box not required
- 230v - 10 gpm series
- H.p. : 1
- For 4" inside diameter or larger wells.
- Pumps from depths of 400 ft.
- Floating stack design for sand resistance and reduced sand locking.
- Corrosion-resistant stainless steel pump and motor housing.
- Heavy-duty discharge connection.
- Precision-molded impellers and diffusers.
- Includes built-in check valve.
- Water filled submersible motor.
Key features:
- For 4" inside diameter or larger wells
- Pumps from depths of 300ft
- Floating Stack Design for sand resistance and reduced sand locking
- Corrosion-resistant stainless steel pump and motor housing
Specification:
- Horsepower: 1
- Performance Series: 10 GPM
- Voltage: 230v 60 Hz
- Number Of Wires: 2 plus ground
- Body Construction: Stainless Steel
- Maximum Capacity: 15.6 GPM
- Operation Range: 20' to 300'
- Maximum Depth-To-Water: 300'
- Max Psi: 170 psi
- Pump Diameter: 3.78"
- Discharge Pipe Size: 1-1/4" NPT
- Recommended Breaker: 20 amp
