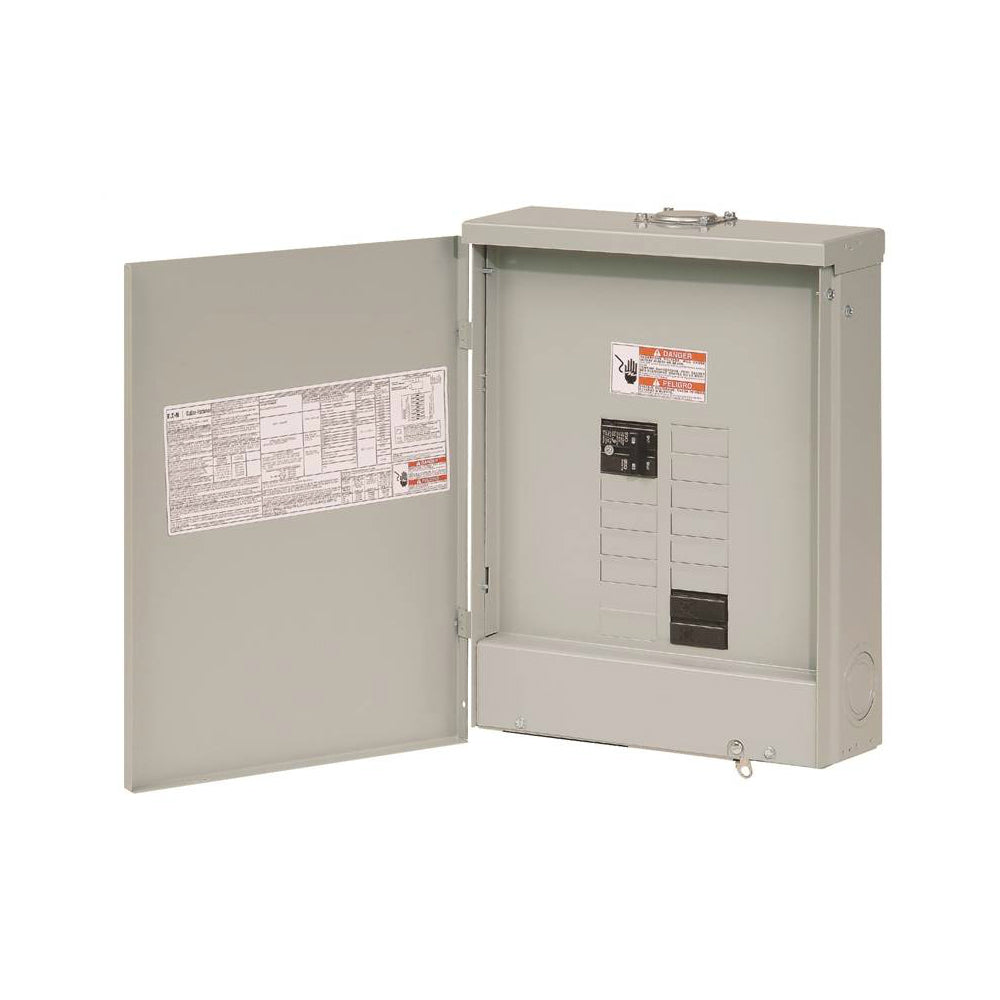

DESCRIPTION

Highlights:

• Voltage : 120/240 VAC
• Amperage : 100 A
• Dimensions : 14-5/16" x 18-3/4" x 5-3/16"
• Cover : cover included
• Enclosure : NEMA 3R
• Interrupt rating : 10 kAIC
• Bus material: aluminum
• Used with: type BR 1 in. breakers
• Number of Circuits : 20
• Cable Size : 1/0 - 4 AWG AL/CU
• Feed Type : Top/Bottom
• Cover Type : Dead Front
• Overall Depth : 5.19 in
• Standards : ANSI Specified, NEC Compliant, UL 50, UL 67 Listed
• Usage : For Residential and Light Commercial Applications
• Quicker, easier and cleaner installation, saving you time
• Plug-on neutral design for ease of installation
• Unique self-leveling tabs to allow for quick drywall offset
• BR type plug-on neutral breaker box eliminates the pigtail connection providing time and labor savings
• Dedicated neutral bus for breaker connection
• In-board neutral bar increases gutter space to allow for professional installation of conductors
• Backed out neutral screws allows for quick connection of neutral and ground conductors
• Optimized knockout locations for additional access and easier to remove
• Self-leveling tabs allow for quick drywall offset and helps simplify installation
• Keyhole hanging feature allows for ease of cover installation for both top and bottom feed applications
• Rigid cover spine provides strength when twist outs are removed allowing for easier removal
• Eaton offers a full line of circuit breakers to meet all your protection needs including arc fault, ground fault, dual function and surge protection
• Rainproof galvanized steel enclosure
• Single phase, 3 wire, insulated/bondable split neutral, 10 (1") spaces, 20 poles, 120/240 volt AC
• Includes feed thru lugs for both phase and neutral conductors
• With hub closure plates, hubs and ground bar kit (necessary for sub-feeding) sold separately
• Twin neutral with non-removable cross bus connecting them
• When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application
