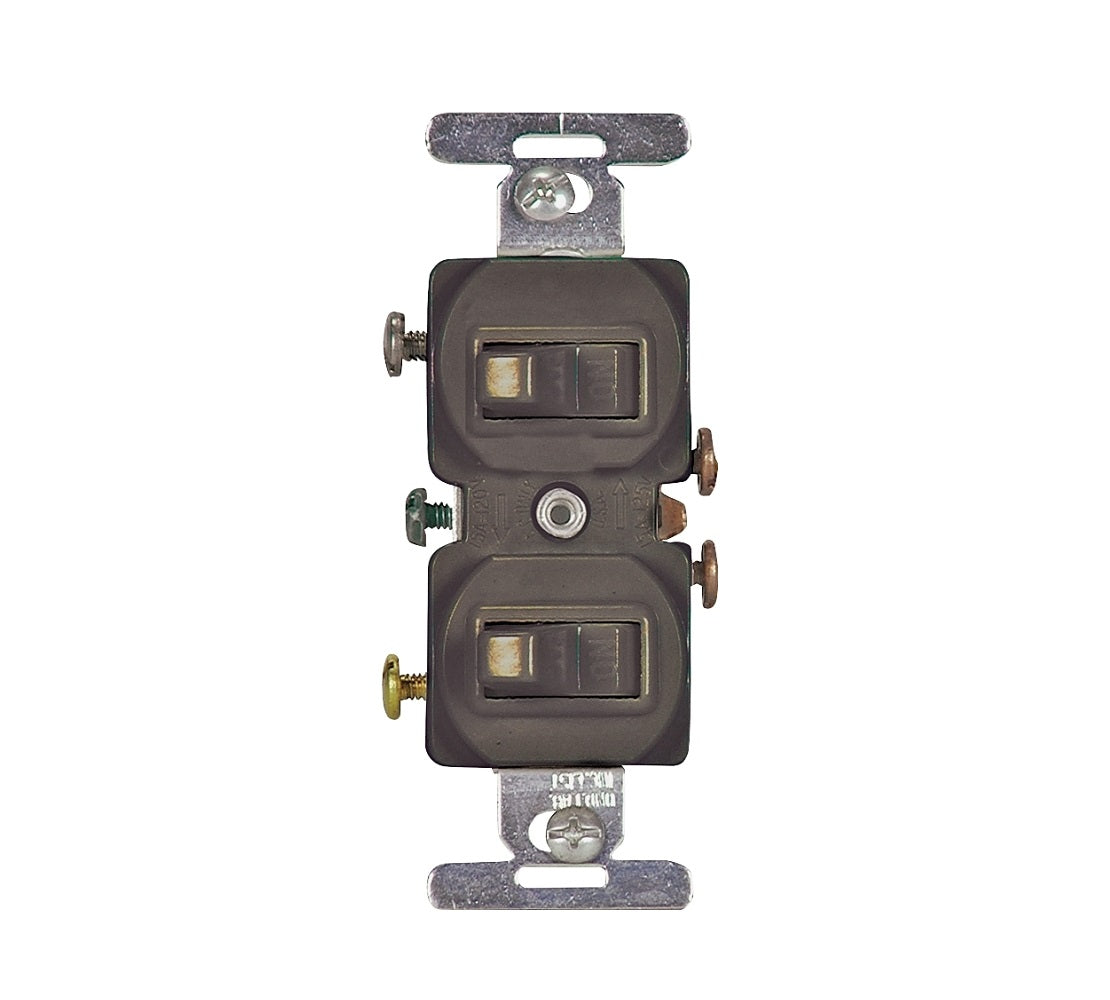

Grounding terminal screw standard. Combination switch with additional switch has 120/277 V rating, ideal for fluorescent lighting fixtures typical in commercial applications.
SKU: 40089055
MFG: 271B-BOX
Shop more products by Eaton.
Best online store to shop electrical repair supplies. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION
Highlights:
- Color : Brown
- Housing Material : Thermoplastic
- Voltage Rating : 120/277 V
- Actuator Type : Cam
- Current Rating : 15 A
- Dimensions : 4.19 inch L x 1.3 inch W x 1.08 inch D
- Mounting Type : Strap
- Number of Poles : 1
- Switch Operation : Back and Side
- Terminal Type : Screw
- Grounding terminal screw standard
- Receptacles have triple wipe line contacts and double wipe ground contacts to insure long-term plug retention
- Thick steel mounting strap is zinc-plated for corrosion resistance
- Break-off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws backed out and ready for wiring
- Pilot light may be wired to indicate power on or power off
- Combination Phillips/slotted screw heads ensure faster installation
FEATURES
MFR:
271B-BOX
SKU:
40089055
UPC:
032664160301
Brand:
Eaton
