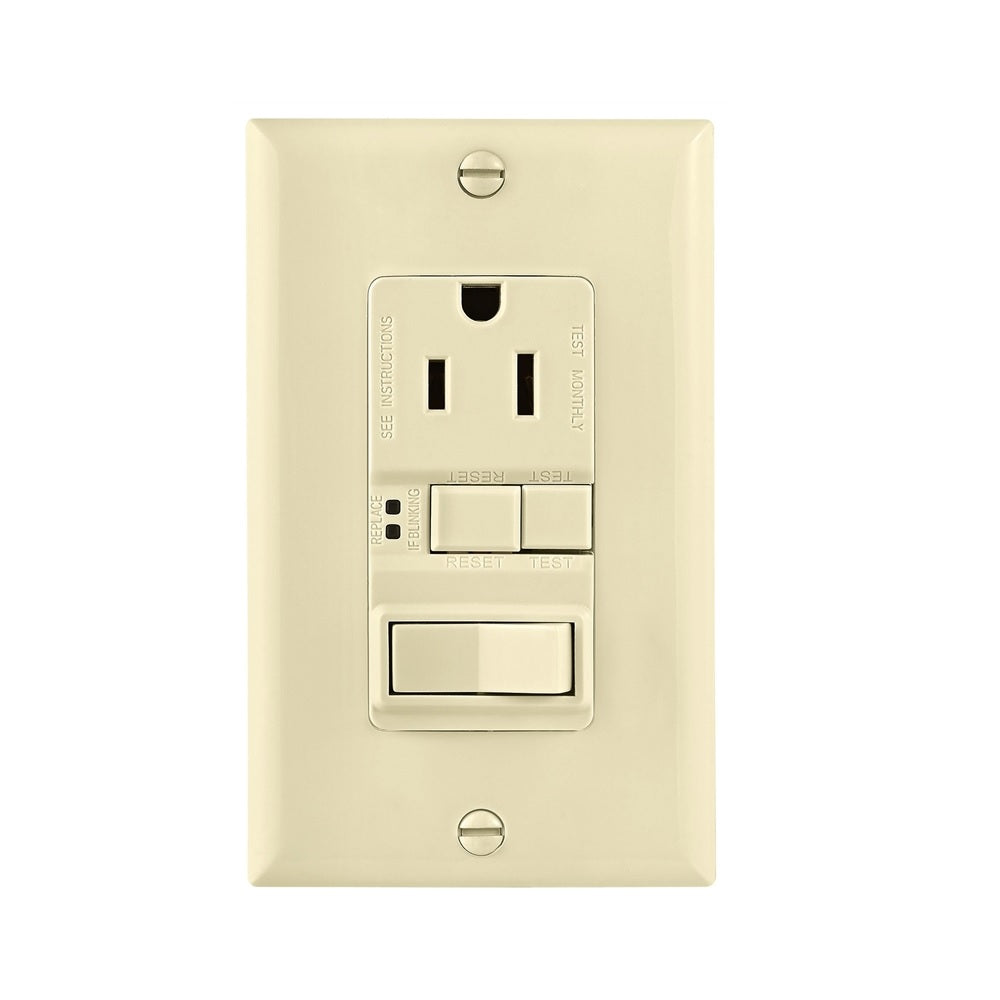

Automatic testing GFCI receptacle. If no GFCI protection is present, the receptacle will render itself inoperable. With toggle switch. Includes mid-size wall plate.
SKU: 43077412
MFG: TRSGFS15LA-M-L
Shop more products by Cooper Wiring.
Biggest electrical equipments retail store to buy Electrical Switches & Receptacles
DETAILS
DESCRIPTION
Highlights:
- Performs periodic self-tests to ensure integrity of GFCI protection if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
- Tapered back wire openings handle multiple wire sizes and types for applications up to NO 10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
- Test and reset buttons are color matched to provide superior aesthetics
- Exclusive built-in wire stripper provides fast stripping of wire without tools
- Line-load miswiring protection: GFCIs will not provide power downstream when wired incorrectly
- Tri-combo head terminal and mounting screws
- cULus Listed to UL498 and UL943
- File No E60120, Meets All UL943 (GFCI)
- UL498 (Receptacles) UL20 (switch) and applicable CSA Requirements
- NOM Certified
Specifications:
- Color: Light Almond
- Type: Self-Test
- Number of Poles: 2
- Voltage Rating: 125 Volt
- Number Of Wires: 3
- Wattage: 1800 Watt
- Amperage Rating: 15 A
- Width: 3.305"
- Wire Size: 10 AWG
- Depth: 2.266"
- Frequency Rating: 60 Hz
- Material: Polypropylene top, PVC bottom housing
- Short Circuit Rating: 10
- Nema Rating: NEMA 5-15R
- Grounding Style: Automatic
- Number of Outlets: 1
- Temperature Rating: -35 TO 66 degree C
- Connection: Back and Side Wired
- Mid-Size WAllplate
- Dielectric Strength: 2000 V
- Type of Indicators: Visual
- Overall Length: 6.197"
- Enclosure Type: Metal
- Overall Width: 3.305"
- Overall Depth: 2.266"
- Terminal Type: Screw
FEATURES
MFR:
TRSGFS15LA-M-L
SKU:
43077412
UPC:
032664753053
Brand:
Cooper Wiring
