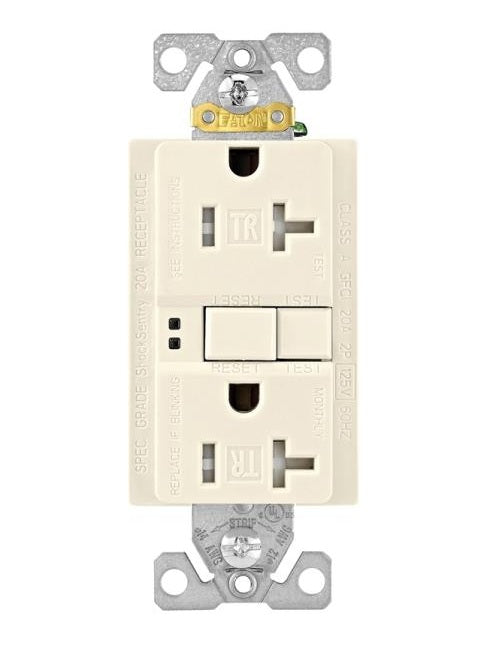

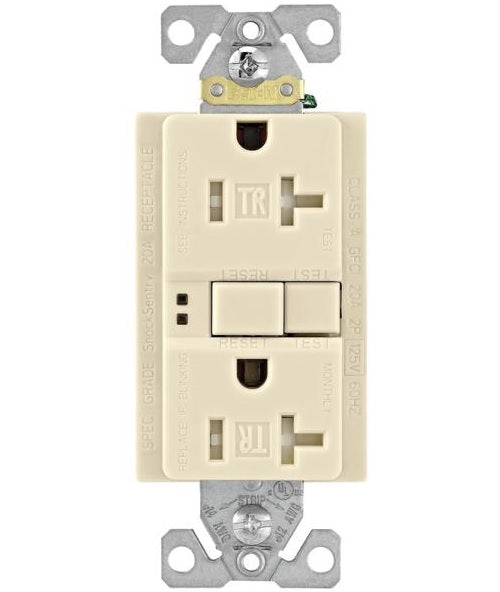

Self-Test GFCI conducts an automatic test periodically to ensure GFCI protection. The device will trip and will not reset if GFCI protection is not available and status indicator light will glow red.
SKU: 43028651
MFG: TRSGF20LA
Shop more products by Cooper Wiring.
We offer lowest price on Electrical Switches & Receptacles, save money on large orders with Life and Home.
DETAILS
DESCRIPTION
Highlights:
- Performs periodic self-tests to ensure integrity of gfci protection, if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
- Meets and exceeds 10 KA short circuit testing and underwriters laboratories (ul) 2006 ul943 safety standards
- Large visual trip indicator light gives quick notification of a tripped or “end of life” condition
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Ground termination with back wire clamp provides secure wiring and reduces installation time
- Tamper resistant shutters resist the insertion of foreign objects
- Line side terminals are backed out and staked for fast installation
- Horizontal test/reset button alignment provides larger unobstructed area
- Test and reset buttons are color matched to provide superior aesthetics
- Tapered back wire openings handle multiple wire sizes and types for applications up to no 10 AWG solid or stranded wire
- when downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
- Line-load miswiring protection
- GFCI’s will not provide power downstream when wired incorrectly; tri-combo head terminal and mounting screws
Specifications:
- Overall Dimensions: 4.2" L x 1.27" D x 1.68" W
- Enclosure Type: Metal
- Type: Self-Test, Tamper Resistant
- Number Of Poles: 2
- Voltage Rating: 125 VAC
- Number Of Wires: 3
- Amperage Rating: 20 A
- Wire Size: 10 AWG
- Frequency Rating: 60 Hz
- Material: Nylon
- Short Circuit Rating: 10
- Nema Rating: NEMA 5-20R
- Grounding Style: Automatic
- Temperature Rating: -35 TO 66 Deg C
- Connection: Back And Side Wired
- Dielectric Strength: 2000 V
- Terminal Type: Screw
- Type Of Indicators: Large Visual Trip
- Standards: CULus Listed To UL498 And UL943, File No E60120, Meets All UL943 (GFCI), UL498 (Receptacles), UL498 And Applicable CSA Requirements, NOM Certified
FEATURES
MFR:
TRSGF20LA
SKU:
43028651
UPC:
032664739958
Brand:
Cooper Wiring
