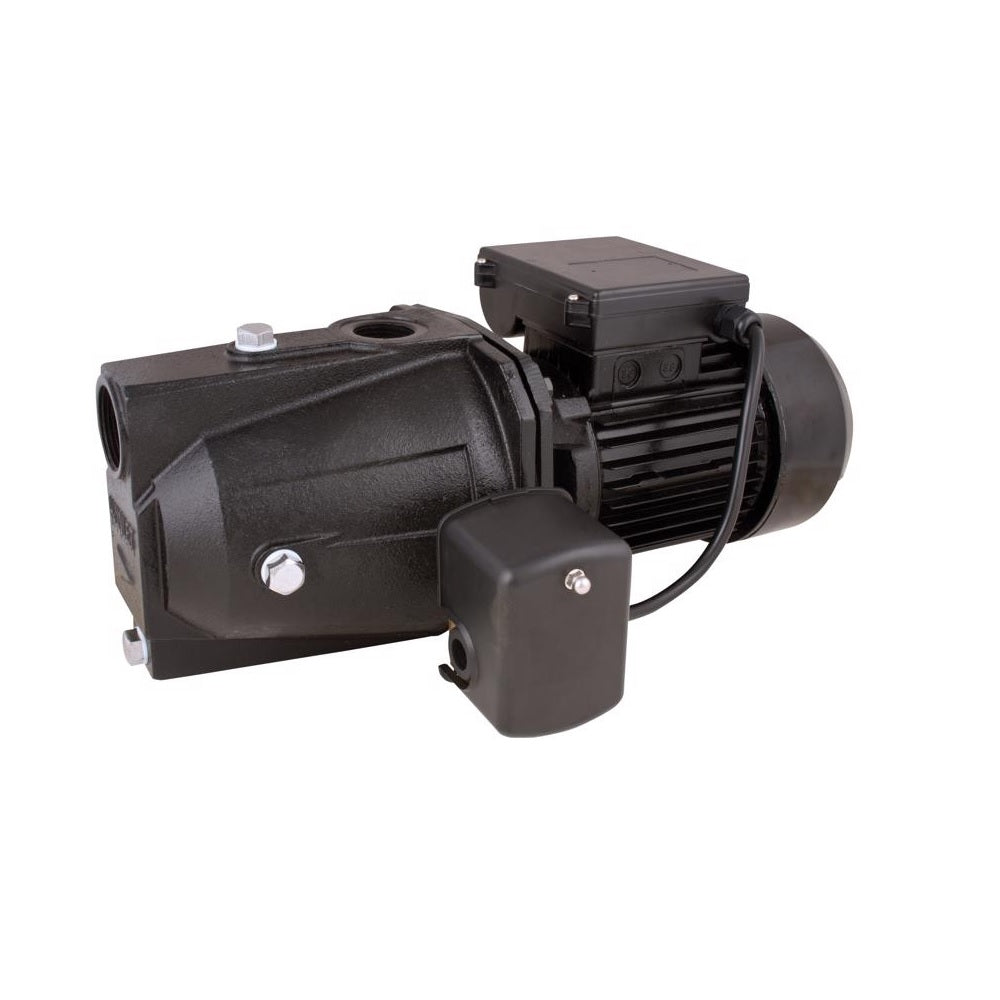

Star Water Systems SJ05S Shallow Jet Well Pump, 115/230 Volt
Star Water Systems SJ05S Shallow Jet Well Pump, 115/230 Volt
The Star 1/2 HP Cast Iron Shallow Well Jet Pump has dual voltage 115/230 with easy change voltage switch. The electric well water pump provides capacities up to 528 GPH and is corrosion resistant.
DETAILS
DESCRIPTION
Highlights:
Voltage: 115/230 Volt
Flow: 570 GPH
Hertz: 60 Hz
Horsepower: 1/2 HP
Phase: 1 Ph
RPM: 3450 RPM
Maximum Discharge Flow: 528 gph
Housing Material: Cast Iron
Pump Type: Shallow Jet
Amps: 8 amps
Height: 9.3 inch
Width: 12.7 inch
Depth: 19.2 inch
Discharge Pipe Size: 1 inch
Discharge Size: 1 inch NPT
Inlet Size: 1-1/4 inch NPT
Suction Lift: Up to 25 feet
Maximum Temperature: 77 degree F
Minimum Temperature: 40 degree F
Maximum Feet of Head: 25 feet
Powered By: AC
Corrosion Resistant: Yes
Self Priming: Non-Self Priming
Pump Switch Type: Pressure
Rugged, cast iron pump and motor housing for long life
20-40 Pressure switch included
Trouble-free, long-life TEFC motor
Quick and easy to install
Features quick, reliable priming
Warning: WARNING : Cancer and Reproductive Harm - www.P65Warnings.ca.gov
FEATURES
MFR:
SJ05S
SKU:
43139485
UPC:
054757054892
Brand:
Star Water Systems
