DESCRIPTION

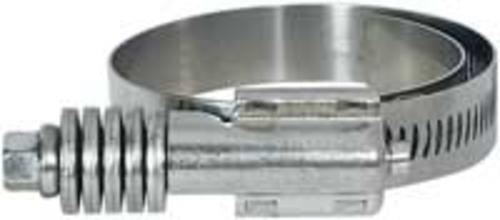

"IMPERIAL" TORQUE CLAMP

• Size: 24
• Used by most OEM's.
• Extra wide 5/8" band.
• Cross Reference: CT9428
• Screw Tip Extension "A": 3/16"
• Solid stainless steel clamp assembly.
• Maximum Installation Torque: 30-70 inch lbs.
• Clamp Diameter: minimum: 1-5/16", maximum: 2-1/4"
• Automatically adjusts to operational or environmental temperatures.
• Each clamp contains a visual torque check to ensure proper torque.
• Used on all radiator, silicone heater, and air charged after cooler hose connections.
• Eliminates coolant loss due to cold flow leakage, and greatly minimizes clamp maintenance.
• Clamp is installed correctly when the screw tip "A" ("TORQUE CHECK") is extended beyond the housing, and the belleville washer stacks are nearly collapsed flat.
• Eliminate hose connection leaks with a revolutionary new clamp that reacts to changes in hose systems by actually increasing or decreasing its own diameter as the system expands or contracts.
