Biggest home electrical supplies retail store to buy Electrical Panel Boxes
DETAILS
DESCRIPTION
Highlights:
- Includes a fully distributed neutral bar, allowing for the installation of Homeline Plug-on Neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Ground and neutral bars accept up to (3) #10-14 equipment grounds

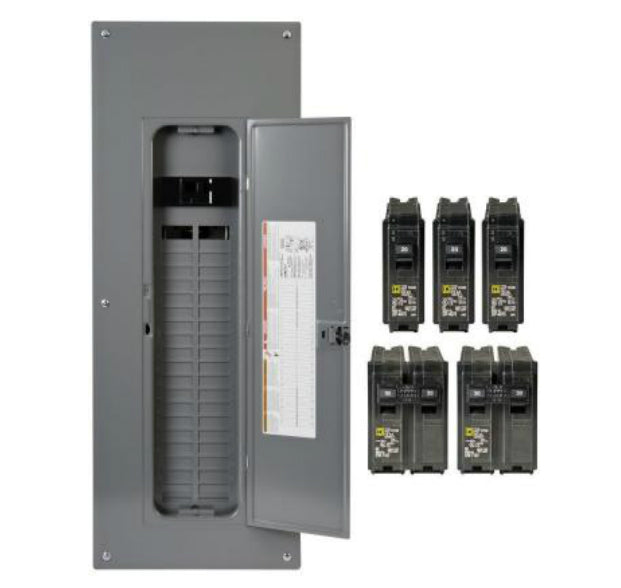

- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface indoor cover
- Accommodates plug-on secondary surge arrestor (sold separately)
- Overhead/underground feed simply by rotating the device before installing
- Single phase
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
- Automatic flush adjusting cover requires less time to complete the job
- Designed with straight-In mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
- Thermoplastic interior assembly is among the most rugged in the industry
- Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
- For protection from damage or theft on the job site, interiors can be easily removed with a single captive screw
- Three ground bar mounting locations (left, right and end) let you pick the easiest spot to wire
- UL Listed
- Boxed
Specifications:
Maximum Amperage | 200 amps |
Maximum Voltage (volts) | 120/240 |
Number of Spaces | 40 |
Maximum Number of Circuits | 80 |
Mounting Type | Plug-In |
Indoor and Outdoor | Indoor |
Assembled Width | 16.3" |
Assembled Depth | 42.2" |
