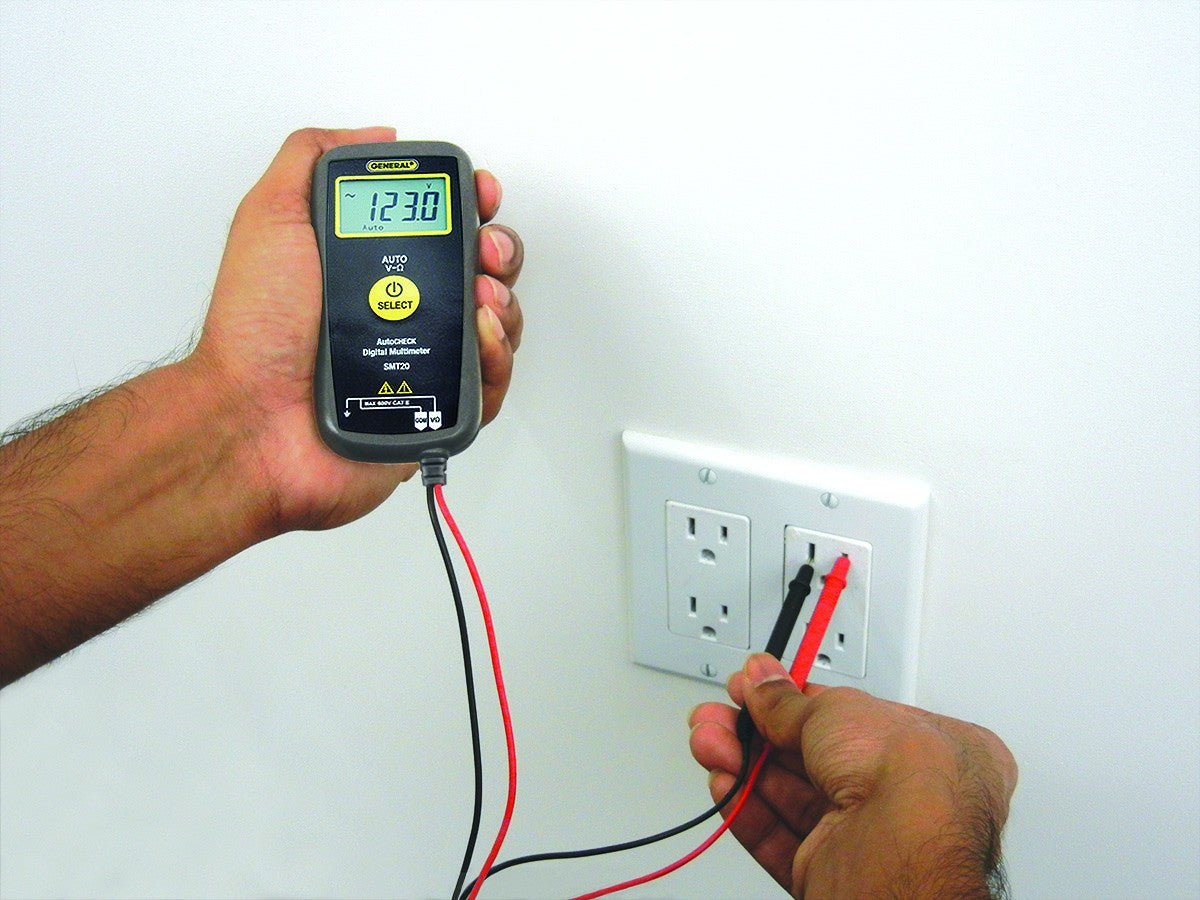

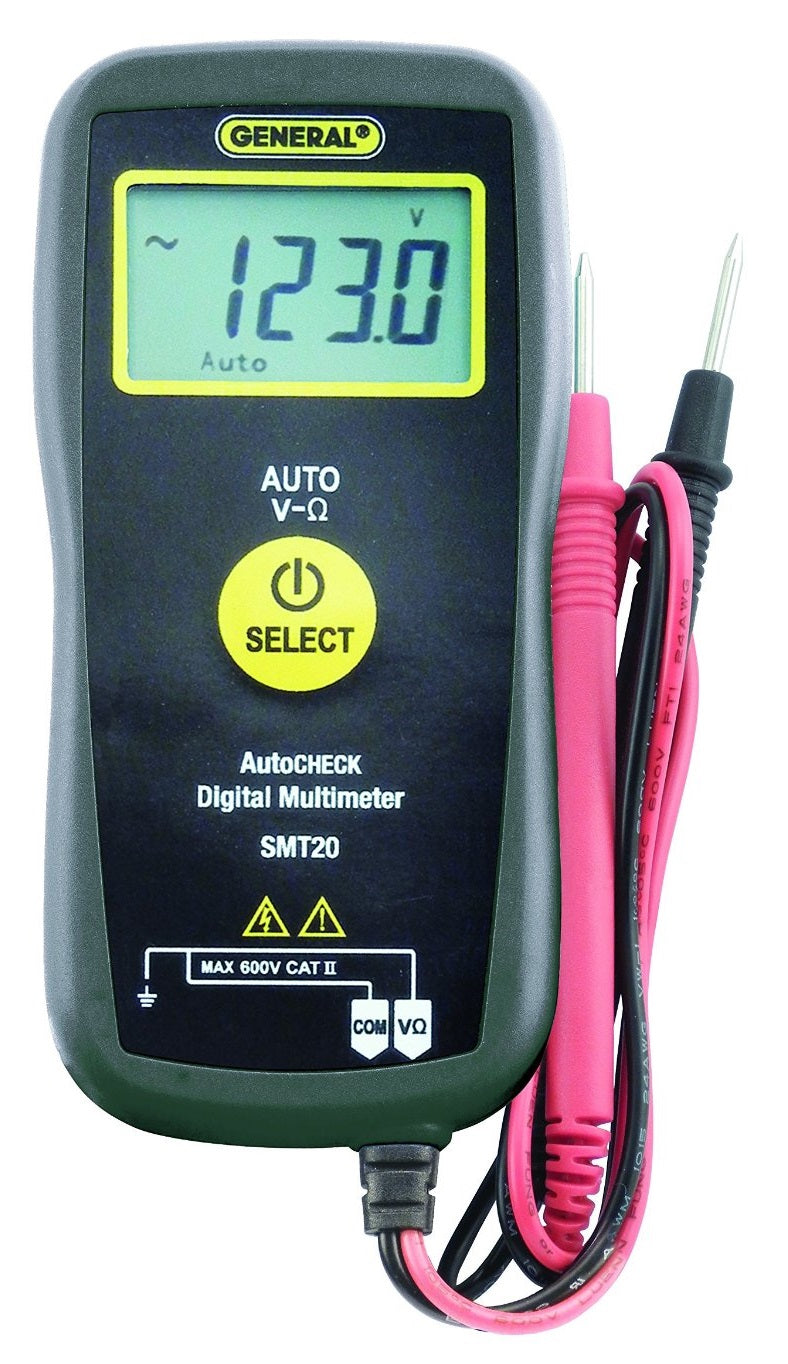

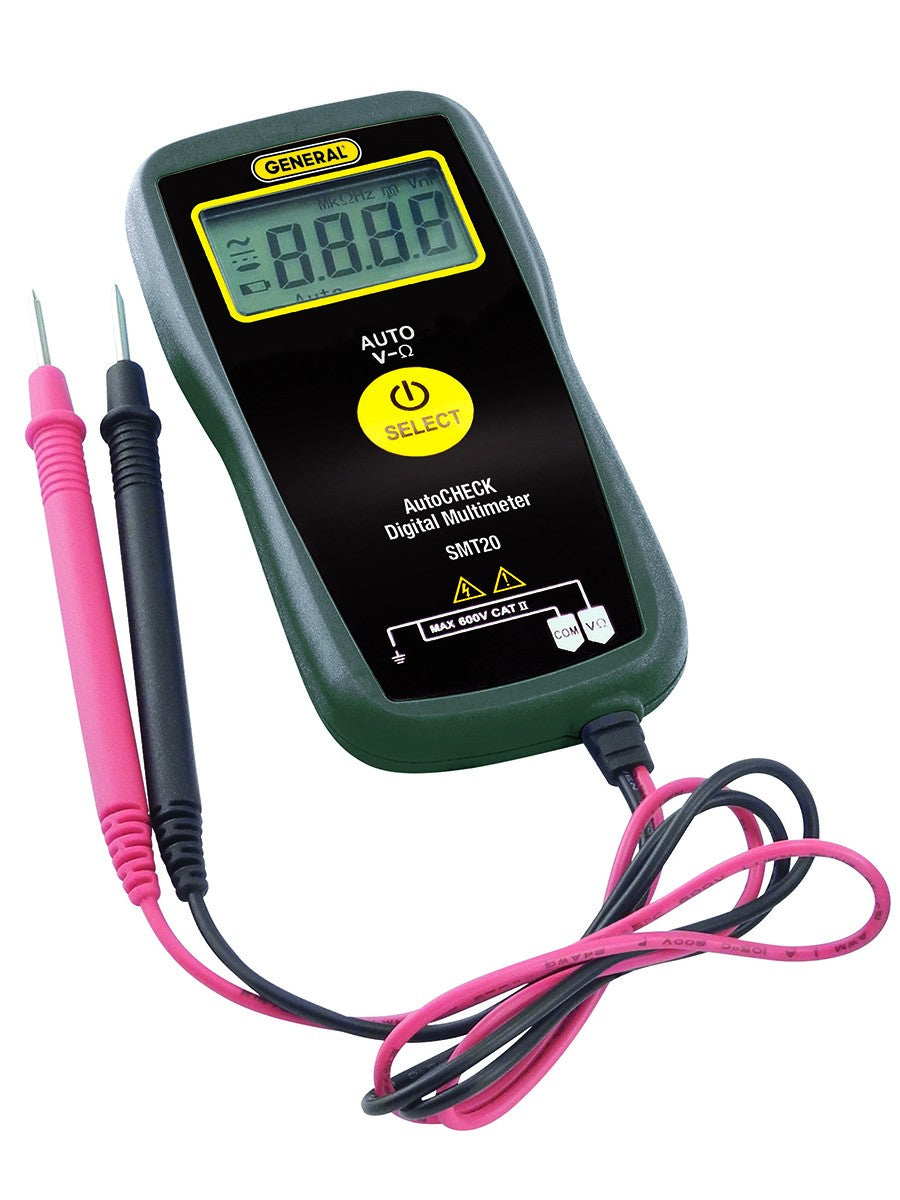

This digital multimeter is a CAT II 600V rated, Auto-Ranging pocket-sized multimeter that automatically measures AC and DC Voltage, Resistance, Frequency and Capacitance.
SKU: 42990883
MFG: SMT20
Shop more products by General Tools.
Buy Multimeter on sale from largest professional electrical tools store in USA
DETAILS
DESCRIPTION
Highlights:
- 7 functions, 24 ranges
- Measures AC/DC voltage, resistance, frequency and capacitance
- Also checks circuits for continuity
- Non-contact voltage (NCV) detector
- ETL certified safe for CAT II 600V use
- Auto ranging
- Auto power off
Specifications:
- AC/DC voltage measurement ranges: 0 to 6V/60V/600V
- AC voltage measurement accuracy/resolution: ±(1% + 5 digits)/1mV (max)
- DC voltage measurement accuracy/resolution: ±(0.8% + 3 digits)/1mV (max)
- Resistance measurement ranges: 0 to 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/10MΩ
- Resistance measurement accuracy/resolution: ±(2% + 4 digits) or better/0.1Ω (max)
- Frequency measurement ranges: 1 to 10Hz/100kHz/1kHz/10kHz/100kHz
- Frequency measurement accuracy/resolution: ±(1% of reading + 4 digits)/0.001Hz
- Capacitance measurement ranges: 1 to 40nF/400nF/4μF/40μF/100μF
- Capacitance measurement accuracy/resolution: ±(4% + 5 digits) or better/10μF
- Display size and type: 3-5/6 digit (6000 count) LCD
- NCV detection range/distance: 50 to 600VAC/0.25 in. (6mm)
- Overload protection level: 250VAC/DCRMS
- Maximum input voltage: 600V
- Input impedance: 10MΩ
- Auto power off trigger: 15 minutes of front-panel inactivity
- Operating temperature: 32° to 104°F (0° to 40°C) @<75%RH
- Weight: 2.47 oz. (70g)
- Power source: Two LR44 or equivalent button
- batteries (included)
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
SMT20
SKU:
42990883
UPC:
681035017241
Brand:
General Tools
