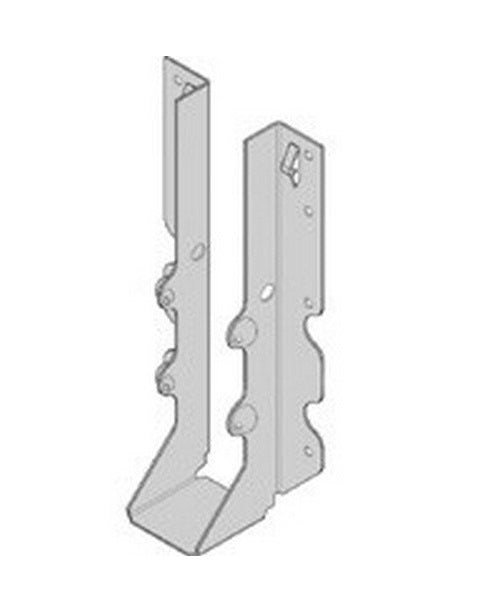

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Patented double-shear nailing design provides greater strength with fewer nails.
SKU: 43008648
MFG: JUS210-3
Shop more products by USP Lumber.
Best online store to shop building hardware supplies. Save big with Life and Home discount coupons
DETAILS
DESCRIPTION
Highlights:
- Dimensions: 4-5/8" W x 2" H x 8-3/8" L
- Size: 2" x 10"
- Thickness: 18 Gauge
- Series: JUS
- Material: Steel
- Finish: Galvanized
- Type: Double Shear, Slant
- Style: Face Mount
- Load Capacity: 1800 Lb
- Skew Angle Range: 30 - 45 Deg
- Carrying Member Fastener Type: (8) 16d Nail
- Carried Member Fastener Type: (6) 16d Nail
- Double shear nailing for fewer nails and faster installation
- Dimples allow for 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications
- Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade county, FL 11-0510.01 and 07-0419.01 codes
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov
FEATURES
MFR:
JUS210-3
SKU:
43008648
UPC:
081942092957
Brand:
USP Lumber
