Dimples allow for 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications.
SKU: 42902506
MFG: JUS28-2
Shop more products by Usp Structural Connectors.
We offer wide selection of Joist Hangers & Connectors, with Life and Home you always get the best deals
DETAILS
DESCRIPTION

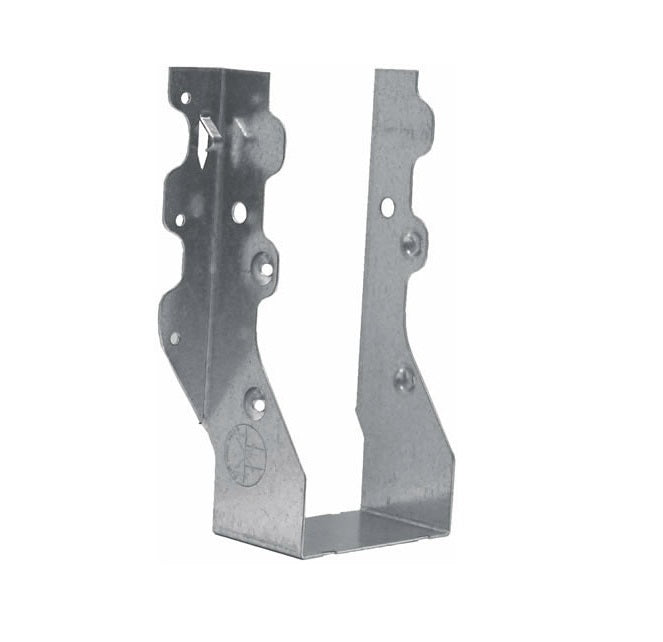

Double shear nailing for fewer nails and faster installation. Dimples allow for 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications. Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade county, FL 11-0510.01 and 07-0419.01 codes.
Highlights:
- Dimension: 7-1/8" L x 3-1/8" W x 2" H
- Finish: Galvanized
- Joist Size: 2" x 8 - 10"
- Type: Double shear, slant
- Style: Face mount
- Thickness: 18 gauge
- Load capacity: 1290 lb
- Skew angle range: 30 - 45 degree
- Material: Steel
- Carrying fastener type: (6) 16d Nail
- Carried fastener type: (4) 16d Nail
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
JUS28-2
SKU:
42902506
UPC:
081942092827
Brand:
Usp Structural Connectors
