Dimples allow for 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications.
SKU: 42902089
MFG: JUS26-2
Shop more products by Usp Structural Connectors.
Biggest building hardware parts retail store to buy Joist Hangers & Connectors
DETAILS
DESCRIPTION

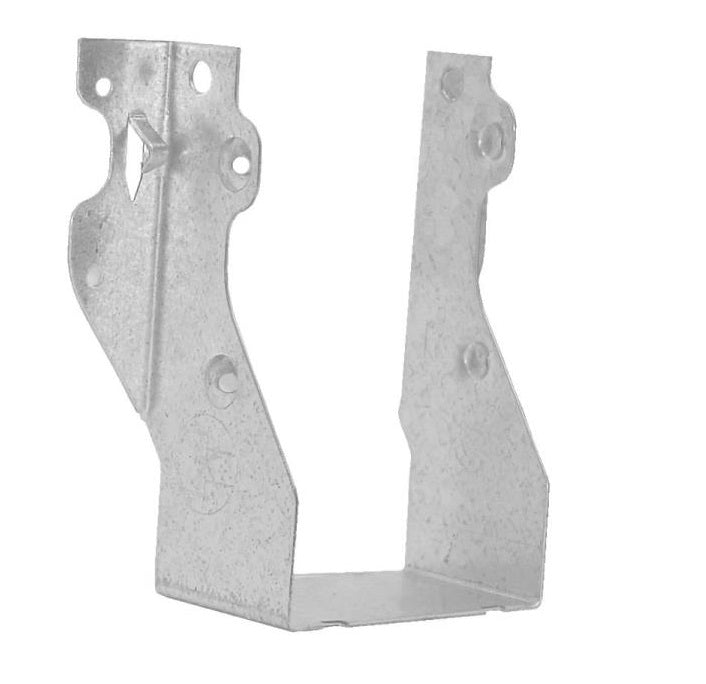

Double shear nailing for fewer nails and faster installation. Dimples allow for 45 degree nailing through joist into header, resulting in higher loads and less nailing, and eliminate need for shorter joist nails in 2x applications. Meets ICC-ES ESR-1881, FL821, L.A. City RR25779, Dade county, FL 11-0510.01 and 07-0419.01 codes.
Highlights:
- Joist Size: 2" x 6 - 8"
- Dimension: 5-1/4"L x 3-1/8"W x 2"H
- Finish: Galvanized
- Type: Double shear, slant, support
- Style: Face mount
- Thickness: 18 gauge
- Load Capacity: 1015 lb
- Material: Steel
- Skew Angle Range: 30 - 45 degree
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
JUS26-2
SKU:
42902089
UPC:
081942091950
Brand:
Usp Structural Connectors
