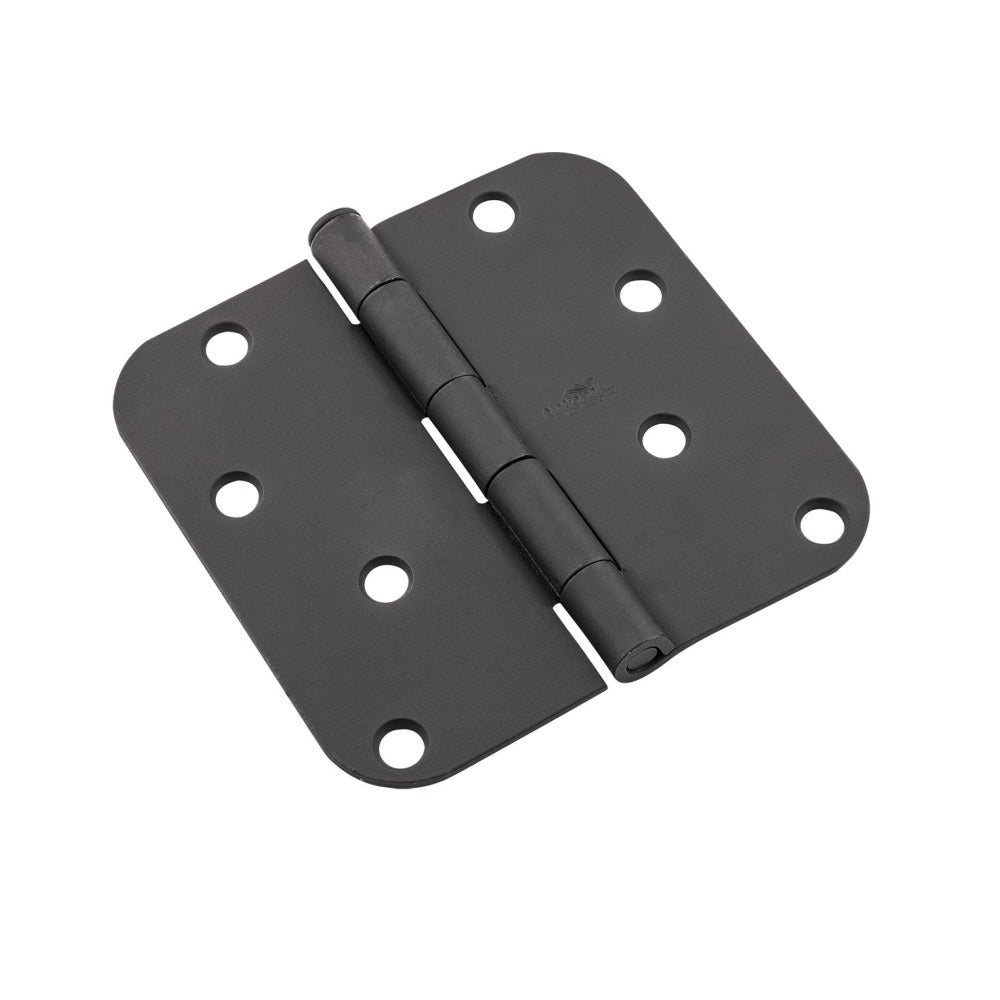

National Hardware N830-429 Door Butt Hinge, 4 inch, Black
National Hardware N830-429 Door Butt Hinge, 4 inch, Black
Heavy-gauge cold-rolled steel for added strength. Five knuckle, full mortise design. Screw holes are countersunk. Removable pin for easier installation or removal of doors.
SKU: 43131925
MFG: N830-429
DETAILS
DESCRIPTION
Highlights:
Color: Black
Material: Steel
Mounting Type: Mortise Screw
Corner Radius: 5/8 inch
Dimensions: 4-5/16 inch H x 4 inch W
Door Leaf Height: 4 inch
Door Leaf Thickness: 0.08 ga
Frame Leaf Height: 4 inch
Frame Leaf Thickness: 0.08 ga
Hole Spacing: 3.31 3-5/32 2-1/8 inch
Includes: Mounting Hardware
Number of Knuckles: 5
Number of Mounting Holes: 8
Orientation Type: Left Reversible Right
Pin Diameter: 7/16 inch
Pin Type: Removable
Weight Capacity: 55 lb
Heavy-gauge cold-rolled steel for added strength
Flush pin for finished appearance
Five knuckle, full mortise design
5/8 inch radius round corners
Screw holes are countersunk
Removable pin for easier installation
FEATURES
MFR:
N830-429
SKU:
43131925
UPC:
886780020328
Brand:
National Hardware
