Allowable loads have been increased 33-1/3% or 60% for wind or seismic loads; no further increase shall be permitted. Installation into concrete slab or poured stemwall.

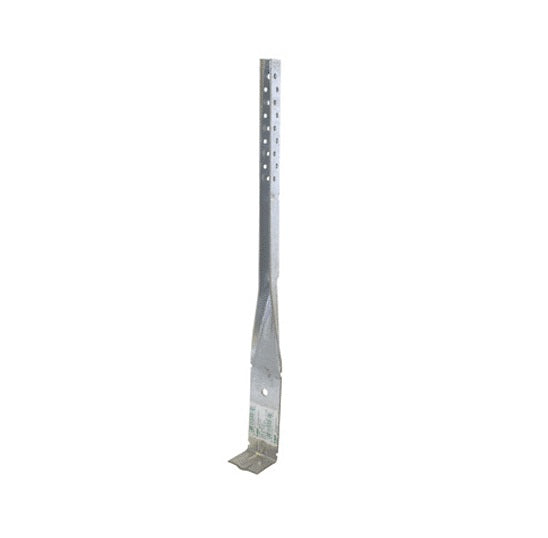

SKU: 40878563
MFG: ST1-TZ
Shop more products by Usp Structural Connectors.
Shop for Framing Angles & Anchors on sale from the biggest building construction supplies store in USA
DETAILS
DESCRIPTION
Highlights:
- Plate Size: 2" x 4" x 6"
- Type: Single
- Finish: Triple Zinc
- 10d x 1-1/2 nails are 9 gauge (0.148" diameter) by 1-1/2" long
- 8d x 1-1/2 nails are 11 gauge (0.131" diameter) by 1-1/2" long
- Allowable loads have been increased 33-1/3% or 60% for wind or seismic loads; no further increase shall be permitted
- Anchor spacing and design loads assume treated Douglas Fir-Larch with Fc perpendicular @ 625 psi
- Installation into concrete slab or poured stemwall
- Replaces code prescribed 1/2" anchor bolt with standard washer, spaced 6' on center. If installed in the alternate configuration, the ST1-TZ shall be embedded 11" and ST2-TZ 19"
- When a 2 x 8 mudsill is used for ST1-TZ or ST2-TZ, maximum spacing is 3' unless alternate installation is used
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
ST1-TZ
SKU:
40878563
UPC:
081942112310
Brand:
Usp Structural Connectors
