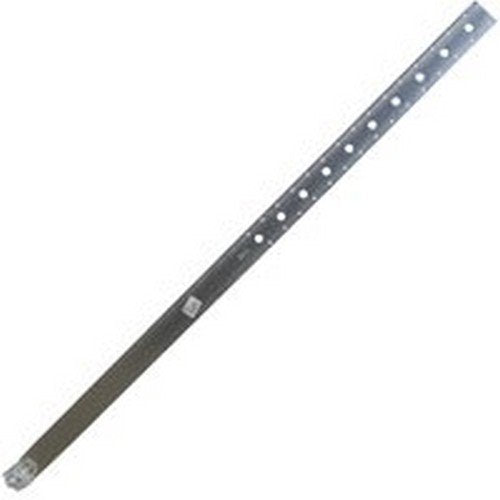

Effective for resistance against high wind or seismic forces. Requires a 6" embedment into concrete footings (foundation) when concrete is wet.
SKU: 43008706
MFG: TA71
Shop more products by Usp Structural Connectors.
Biggest supplier for building construction supplies. Enjoy lowest price on Foundation Anchors
DETAILS
DESCRIPTION
Highlights :
- Finish : Galvanized
- Material : 12 Ga Steel
- Series : TA
- Length : 68-1/4"
- Width : 2-1/16"
- Minimum embedment depth : 6"
- Post joist size : 2 X 10"
- Fastener type : (3) Bolts, (10) Nail
- Fastener size : 1/2" Bolt, 16d X 2-1/2" Nail
- Load capacity : 1950 Lb Uplift
- Grade : G90
- Economical, 1-piece method of achieving a continuous load path from a 2x rim joist through concrete block to foundation
- Effective for resistance against high wind or seismic forces
- Requires a 6" embedment into concrete footings (foundation) when concrete is wet
- Not for concrete sections together between cold joints
- 2-1/4"CTC for all fastening holes, 22-1/8"L from top to bottom of fastening holes
- Meets NER 505 codes
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65Warnings.ca.gov/
FEATURES
MFR:
TA71
SKU:
43008706
UPC:
081942061267
Brand:
Usp Structural Connectors
