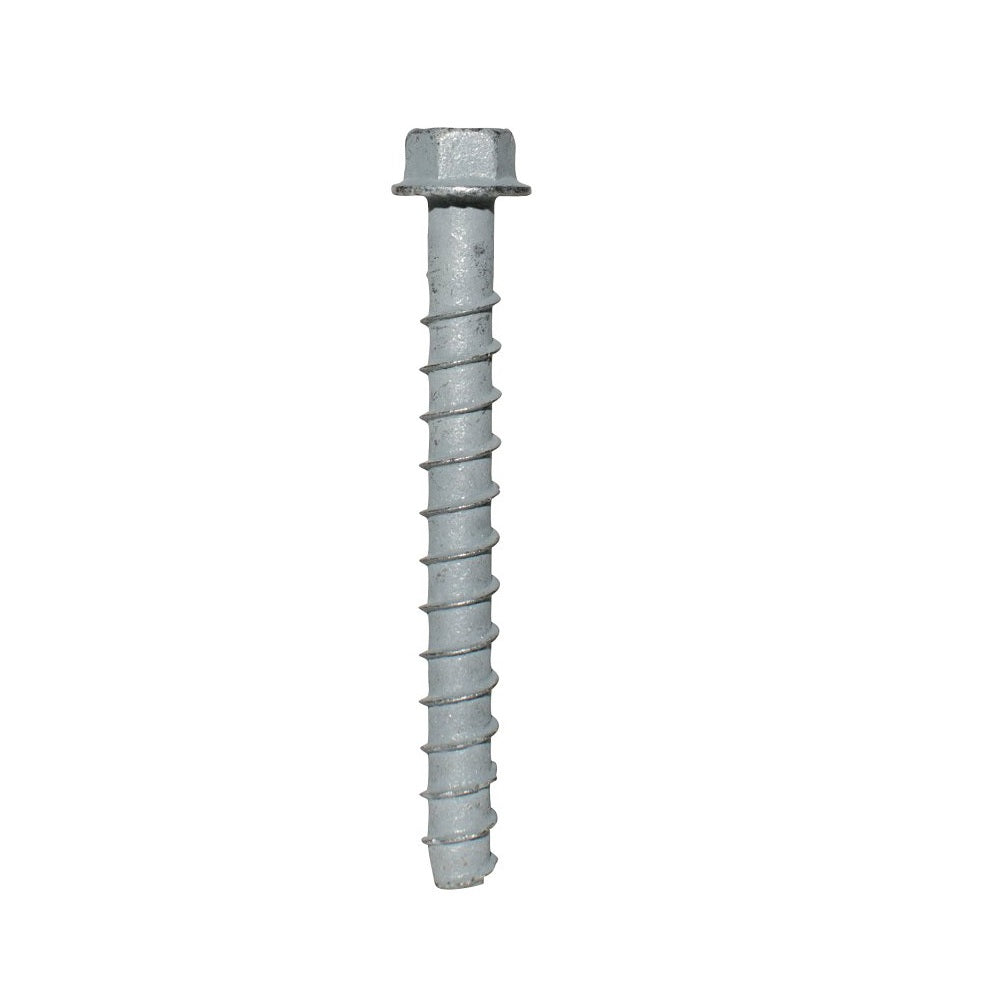

The Titen Heavy-Duty screw anchor is designed for a wide variety of applications such as sill plates, ledgers, post-bases, seating and other holdown applications.
SKU: 43158671
MFG: THD37400HF1
Shop more products by Simpson Strong-Tie.
DETAILS
DESCRIPTION
Highlights:
- Color: Gray
- Finish: Zinc Plated
- Material: Carbon Steel
- Diameter: 3/8 inch
- Drill Size: 3/8 inch
- Drive Type: Hex
- Fixture Thickness: 1/2 inch to 9/16 inch
- Head Type: Hex
- Length: 4 inches
- Minimum Clearance: 1/2 inch
- Minimum Concrete Thickness: 4 inches to 5 inches
- Minimum Embedment Depth: 2-1/2 inch to 3-1/4 inch
- Shear Strength: 4460 lbs
- Tensile Strength: 10890 lbs
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Designed to install using standard-sized ANSI tolerance drill bits
- Hex washer head requires no separate washer and provides a clean installed appearance
- Carbon steel Titen HD utilizes a specialized heat-treating process that creates tip hardness for better cutting without compromising the ductility
- Zinc-plated carbon steel anchor can be used for temporary exterior applications
FEATURES
MFR:
THD37400HF1
SKU:
43158671
UPC:
707392678724
Brand:
Simpson Strong-Tie
