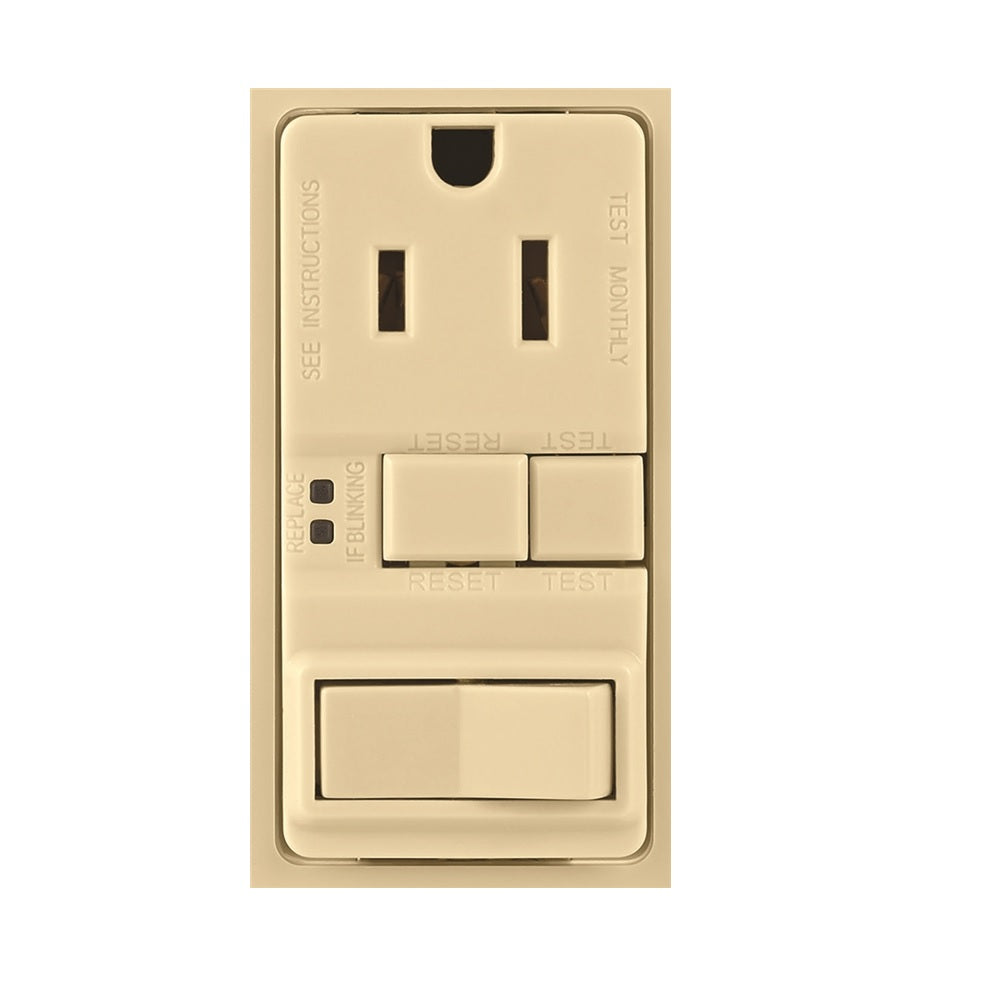

Automatic testing GFCI receptacle. If no GFCI protection is present, the receptacle will render itself inoperable. With toggle switch. Includes mid-size wall plate.
SKU: 43077411
MFG: TRSGFS15V-M-L
Shop more products by Arrow Hart.
We offer lowest price on Electrical Switches & Receptacles, save money on large orders with Life and Home.
DETAILS
DESCRIPTION
Highlights:
- Performs periodic self-tests to ensure integrity of GFCI protection if no ground-fault protection is detected, the device will trip, will not reset and the status indicator light will glow amber
- Tapered back wire openings handle multiple wire sizes and types for applications up-to NO 10 AWG solid or stranded wire
- When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection
- Test and reset buttons are color matched to provide superior aesthetics
- Longer, wider bridge strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Exclusive built-in wire stripper provides fast stripping of wire without tools
- Line-load mis-wiring protection
- Tri-combo head terminal and mounting screws
Specifications:
- Series: SGFS
- Number of Poles: 2
- Voltage Rating: 125 Volt
- Wattage: 1800 W at 120V
- Number Of Wires: 3
- Amperage Rating: 15 A
- Wire Size: 14 - 10 AWG
- Frequency Rating: 60 Hz
- Material: Polypropylene top housing, PVC bottom housing
- Phase: 1
- Nema Rating: 5-15R
- Mounting Type: Wall
- Grounding Style: Self-Grounding
- Temperature Rating: -35 to 66 degree C
- Wall Plate, Feed Through Single Pole Switch
- Dielectric Strength: 2000 V
- cULus Listed
- UL Listed
- NOM Certified
- CSA Requirements
FEATURES
MFR:
TRSGFS15V-M-L
SKU:
43077411
UPC:
032664753060
Brand:
Arrow Hart
