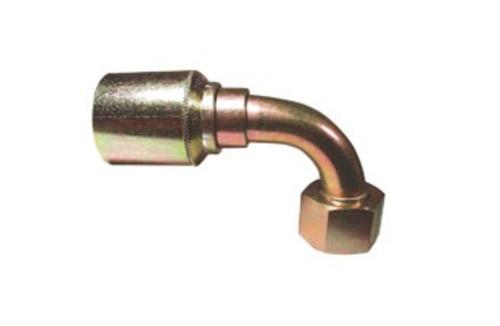

Imperial 93249 U-Series Non-Skive Hose End 90 Degree Tube Elbow, 1" x 1"
Imperial 93249 U-Series Non-Skive Hose End 90 Degree Tube Elbow, 1" x 1"
For Very high pressure hydraulic lines subjected to pressure surges and flexing. Hose is no-skive when used with this hose end. Style: female for-seal swivel 90 degree short drop tube elbow
DETAILS
DESCRIPTION
Highlights:
Hose is no-skive when used with this hose end
Cross Reference: 43016U-A36
For use with H039, H145, H245, H350, H425, H430, H439, and H545 hose
Note: Requires a special T-420 Collet on a T-420 Coll-O-Crimp machine, no spacer ring required
Specifications:
Applications: Very high pressure hydraulic lines subjected to pressure surges and flexing
Finish: Zinc; Clear Trivalent Chromate
Hex Size: 1.625"
Hose Cutoff Factor: 2.93"
Hose I.D.: 1"
Material: Low Carbon Steel
Pipe Thread: n/a n/a
Series: 433 U
Style: female for-seal swivel 90° short drop tube elbow
System of Measurement: Fractional
Thread Size: 1.4375–12
Tube Size: 1"
Type: Crimp Hose End
Working Pressure: determined by maximum working pressure for hose size and hose end configuration whichever is lesser
FEATURES
MFR:
93249
SKU:
42549286
Brand:
Imperial
