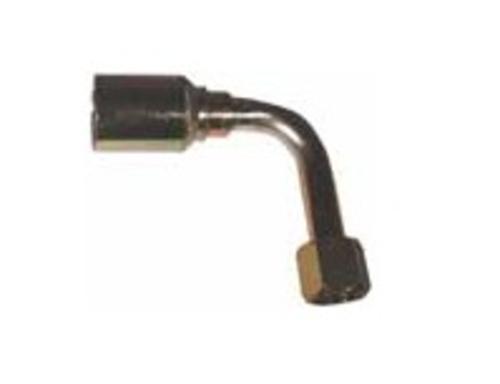

Imperial 93237 High Pressure Female Swivel 90 Degree Tube Elbow, 3/4" x 3/4"
Imperial 93237 High Pressure Female Swivel 90 Degree Tube Elbow, 3/4" x 3/4"
For very high pressure hydraulic lines subjected to pressure surges and flexing. Hose is no-skive when used with this hose end. Style: JIC 37 degree female swivel 90 degree tube elbow
Biggest hardware repair tools retail store to buy Chain, Cable, Rope & Fasteners
DETAILS
DESCRIPTION
Highlights:
Hose is no-skive when used with this hose end
Cross Reference: 43012U-672
Used with H430 hose
Must use special T420 collets on the T420 Coll-O-Crimp® machine, no spacer ring required
Specifications:
Applications: Very high pressure hydraulic lines subjected to pressure surges and flexing
Finish: Zinc; Clear Trivalent Chromate
Hex Size: 1.25"
Hose Cutoff Factor: 2.63"
Hose Inner Diameter: 3/4"
Material: Low Carbon Steel
Series: 430 U
Style: JIC 37° female swivel 90° tube elbow
System of Measurement: Fractional
Thread Size: 1-1/16–12
Tube Flare: 37°
Tube Size: 3/4"
Type: Crimp Hose End
Working Pressure: determined by maximum working pressure for hose size and hose end configuration whichever is lesser
FEATURES
MFR:
93237
SKU:
42549216
Brand:
Imperial
